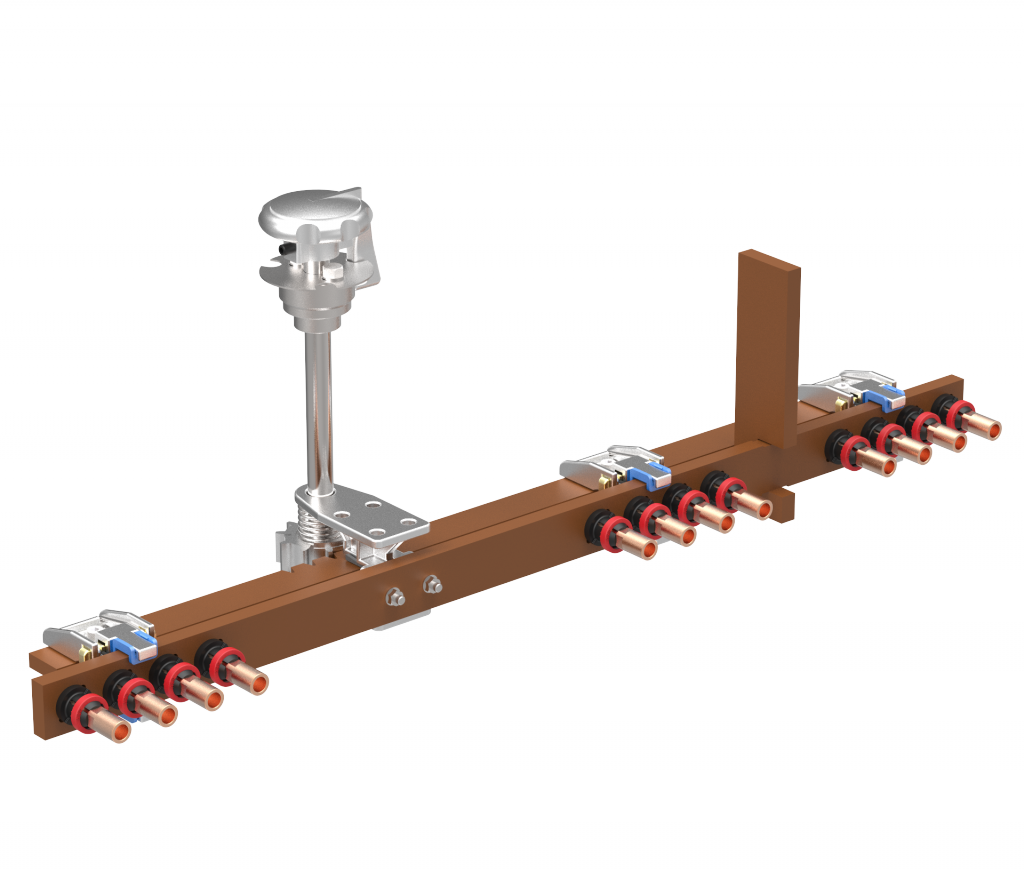

HZ Type

Up to 45 kV Class, 150 A and 11 positions

Direct drive operation, from side wall of tank, or cover of Transformer
Fixing on tank, or cover, or active part of Transformer :

  • by bolting of main bracket on tank, cover or active part of Transformer
  • by bolting of additional support (metallic bracket or insulating hook) on tank, cover or active part of Transformer
  • driving shaft boss to be welded on tank or cover of Transformer

Length of shaft to be required when ordering, no limit in length
Twinned units on several stages (identical or different) are available
Current ratings :

  • 30 A with tubular stationary contacts dia 3.1 x 5.0 mm
  • 63 A with tubular stationary contacts dia 5.1 x 7.0 mm
  • 150 A with removable tubular contacts
HZ.35
