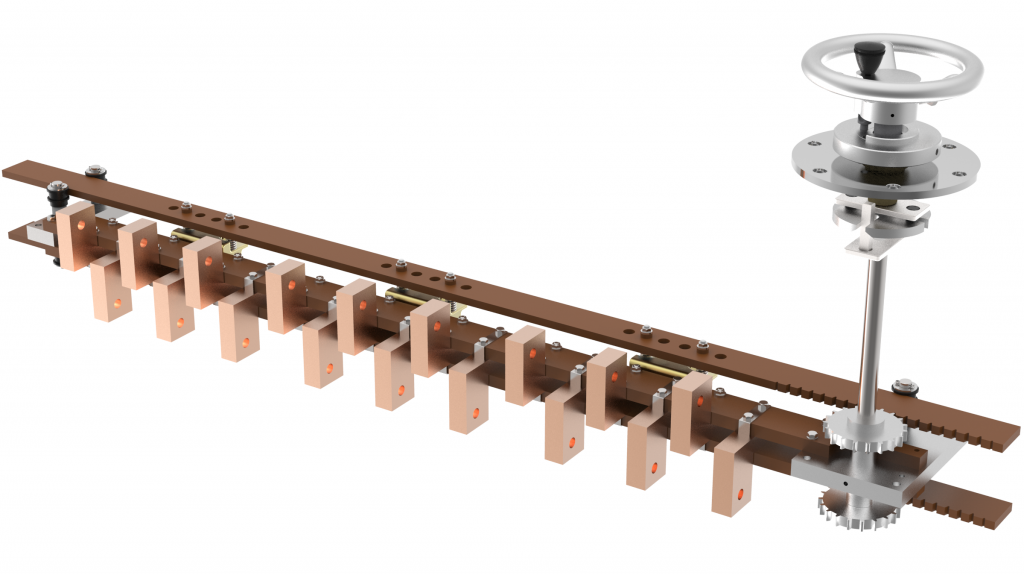

HI Class

Up to 60 kV Class , 1250 A and 13 positions (all combinations are not possible)

Direct drive through coupling operation, from side wall of tank, or cover of Transformer
Remote controls at man’s height are available, for shaft crossing on top or bottom of tank, or on cover of Transformer
Fixing on tank, or cover of Transformer :

  • by bolting of main bracket on tank, cover or active part of Transformer
  • control device flange to be bolted on tank or cover of Transformer

Length of shaft to be required when ordering (designs may vary depending on required distances)

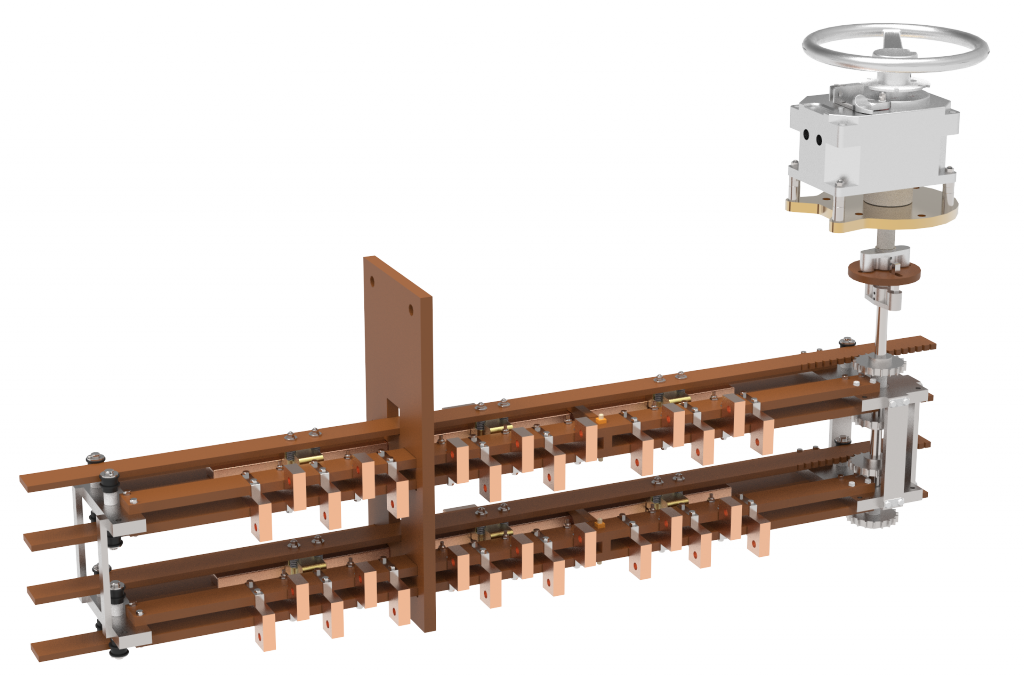

Twinned units on several stages (identical or different) are available
Current ratings :

  • 1000 A with flag contacts
  • 1250 A with flag contacts
  • possible to twin identical boards in parallel for higher currents

Additional information on our catalog
