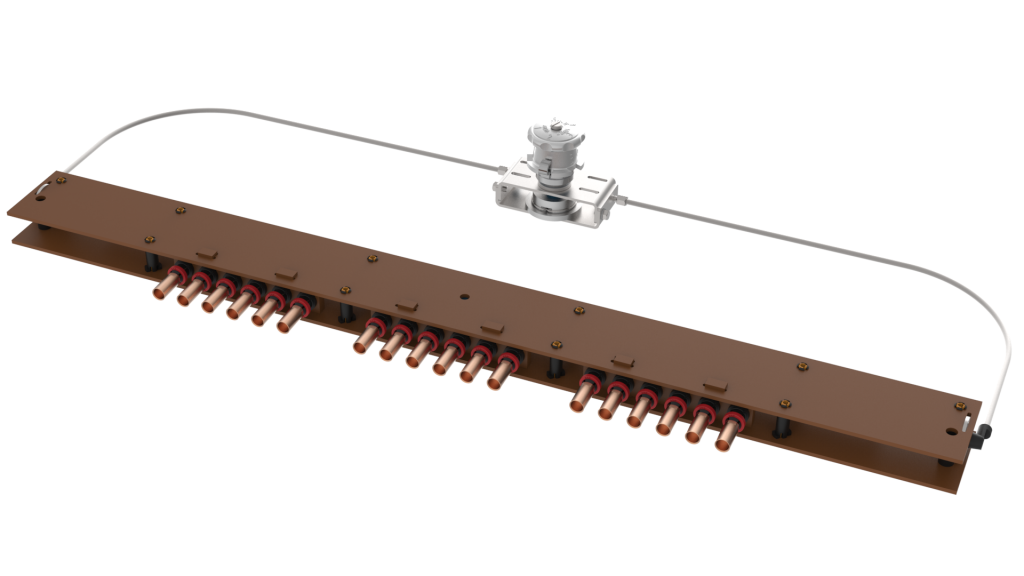

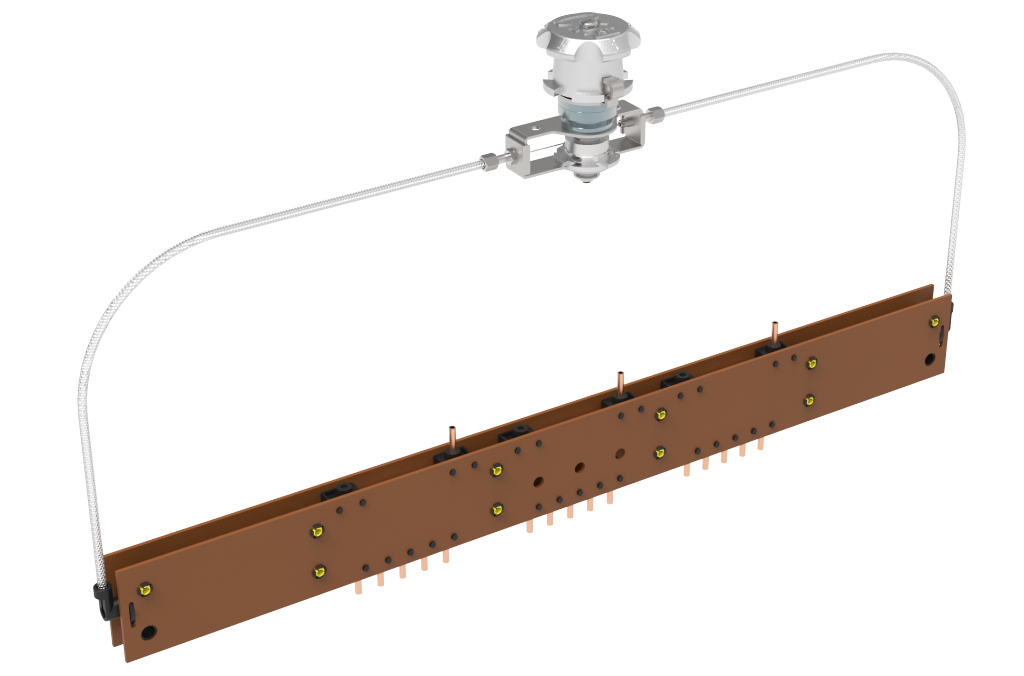

Cable Type

Up to 30 kV Class , 175 A and 9 positions (all combinations are not possible)

Cable operation, from side wall of tank, or cover of Transformer

Fixing on tank, or cover, or active part of Transformer:

  • by bolting of control device (hole dia 27 mm to provide in tank or cover)
  • by bolting of main board on active part, or tank, or cover of Transformer
  • by linking of these 2 parts by means of cables, sliding inside a metallic flexible tube lined by a plastic flexible, these two tubes to be delivered in rolls, to be cut and adjusted during assembly on Transformer

Current ratings:

  • 30 A with tubular stationary contacts dia 3.1 x 5.0 mm
  • 63 A with tubular stationary contacts dia 5.1 x 7.0 mm
  • 175 A with removable contacts (tubular of flat)

Additional information on our catalog
